Description

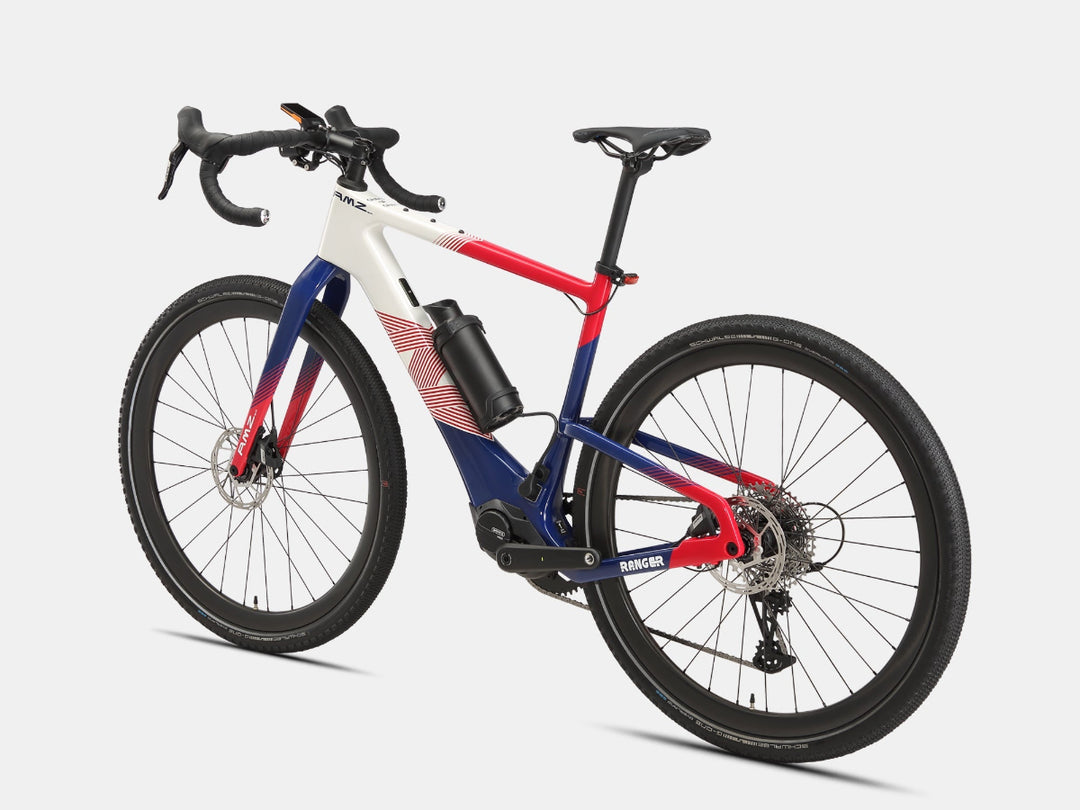

giant electric gravel bike Ranger APEX Electric Gravel Bike – AMZcyclePerformance Table E bike Class Class 1 Usage Scenario Long distance Road Riding Applicable height 5'6"6'5" Weight 37. 3 lbs Voltage 36V Charging Time 6 8 hours Maximum Load 264. 6 lbs Battery Capacity 378 Wh + 252 Wh (Option) Motor Power 250W(peak350W) Max Pedelec Range 50 62 miles + 31 37 miles Max Pedelec Speed 20 mph Specification Table Frame Set Full Carbon Fiber Frame700C142*12mm AxleUDHFICRDual Battery systemFlat Mount Brake Headset FICR51. 88.
Performance Table
| E-bike Class | Class 1 |
| Usage Scenario | Long-distance Road Riding |
| Applicable height | 5'6"–6'5" |
| Weight | 37.3 lbs |
| Voltage | 36V |
| Charging Time | 6-8 hours |
| Maximum Load | 264.6 lbs |
| Battery Capacity | 378 Wh + 252 Wh (Option) |
| Motor Power | 250W(peak:350W) |
| Max Pedelec Range | 50-62 miles + 31-37 miles |
| Max Pedelec Speed | 20 mph |
Specification Table
| Frame Set | Full Carbon Fiber Frame;700C;142*12mm Axle;UDH;FICR;Dual Battery system;Flat Mount Brake |
| Headset | FICR;51.88.7mm-51.86.8mm Bearing |
| Fork | Full Carbon Fiber;700C;12*100mm Axle;FICR |
| Motor | BaFang M820;250W; 75N.m |
| Battery | SAMSUNG 18650Cell;36V10.5Ah;378Wh;UL2271;DC2.1;IPX5 |
| Secondary Battery | SAMSUNG 18650Cell;36V*7Ah;252Wh;UL2271;DC2.1;IPX5 |
| Controller | BaFang M820 |
| Display | BaFang;2.4inch |
| Headlight | LED;12V 0.3A(3.5W) |
| Taillight | LED;12V 0.025A(0.3W) |
| Speed Sensor | BaFang SR S02 |
| Dual Control Lever | SRAM APEX;1*12s;HD |
| Front Brake | Integrated into the Dual Control Lever |
| Rear Brake | Integrated into the Dual Control Lever |
| Front Disc | SRAM 6.3"(160mm);0.07"(1.85mm);Centerlock |
| Rear Disc | SRAM 6.3"(160mm);0.07"(1.85mm);Centerlock |
| Shifter | Integrated into the Dual Control Lever |
| Rear Derailleur | SRAM APEX;1*12s |
| Chainring | BaFang G532;44T;CL49 |
| Crankarm | SAMCX CEC05;6.9"(175mm);Carbon Fiber Crankarm |
| Chain | SRAM APEX 12s |
| Cassette | SRAM APEX;12s;10-51T |
| Handlebar | Controltech;AL6061;W:16.5-19.1"(420-484mm);Sidesweep:16°;W1:18.3-19.8"(464-504mm) |
| Stem | AL6061;Ext.:3.1"(80mm);Angle: -7°;Diameter:31.8mm;Steerer:28.6mm;Height: 1.6"(40mm) |
| Saddle | Selle italian;233g;5.7"x9.8"(145*248mm) |
| Pedal | 4.1"x4.3"(104.7×108mm);ZP bearing |
| Dropper Post | KS Rage IS;1.07"(27.2mm);2.6"(65mm)Travel |
| Dropper Post Controller | NA |
| Rims | WTB ST i23; 28H; 14G (Front); WTB ST i23; 32H; 14G (Rear) |
| Front Hubs | 12*100mm;28H;14G;Ebike Reinforced |
| Rear Hubs | 12*142mm;32H;14G;Ebike Reinforced |
| Spokes | 14G |
| Nipples | 14G; 0.55"(14mm) |
| Tubes | KENDA 700X50C,FV48mm |
| Tires | Schwalbe G-One OVERLAND 365;700*50C(27.5x2.0"approx) |
